A hidden WiFi relay that puts an existing 220-240V curtain or roller shutter motor on your phone, for homes that already have the motor but no app.
Typical Amazon.ae price for the device, checked 13 Sept 2026. See the listing Installation is quoted separately after we check your property.
Supplied, fitted and configured by our own Dubai team. We check compatibility with your property before you commit to anything.
This is a small relay module that sits behind an existing curtain or roller shutter motor and gives it app control. It is not a wall switch. There is no faceplate and no gang count. The module measures 52 x 47 x 18mm and hides inside the junction box at the motor, or behind the existing curtain rocker, so the wall keeps the look it already has. Wiring is six screw terminals: live and neutral for the AC 90-250V supply, then S1/L1 and S2/L2 for the motor's two directions. It joins your 2.4GHz WiFi directly, so no Tuya or Zigbee gateway is needed, and control runs through the Smart Life or Tuya app, with Alexa and Google Home voice on top. It suits Dubai apartments and villas that already have motorised curtains or shutters running off a plain wall rocker, which is a common developer handover fit: the motor works, it just has no app. You buy nothing else for connectivity. The motor has to be a 220-240V AC curtain or tubular type with four wires. DC motors and RF-only motors are not supported. A neutral must be present where the module is spliced in, so a true no-neutral spot rules it out. MOES is a value brand, not a premium one. Rated 500W and 2A, it is the cheap, sensible way to add app control next to Aqara or Sonoff, and the app polish and the thin UAE review history match the price.
Hides inside the motor junction box, so nothing changes on the wallNo hub or gateway to buy, it joins the home WiFi on its own
Alexa and Google voice, plus timers and schedules in Smart LifeThe cheapest honest way to app-control a curtain motor you already ownModel WiFi mini DIY curtain/roller shutter switch module
| Protocol | WiFi 2.4GHz (802.11 b/g/n), controlled through the Smart Life or Tuya app |
| Power input | AC 90-250V, 50/60Hz, wired to the module's L and N terminals |
| Load rating | 500W max, 2A on MOES's own spec sheet (Amazon.ae's spec table separately lists a 10 Amp relay contact rating) |
| Gateway requirement | None. Standalone WiFi device that connects straight to the home router, not Zigbee |
| Motor compatibility | Existing 220-240V AC tubular or curtain motor with 4 wires. DC motors and RF-only motors are not supported. Motor sold separately |
| Voice and app control | Amazon Alexa and Google Home/Assistant voice control. Smart Life or Tuya app for schedules, timers, countdown and family sharing |
| Physical format | Concealed relay module, 52 x 47 x 18mm, fits inside the existing motor or switch junction box. No visible wall plate |

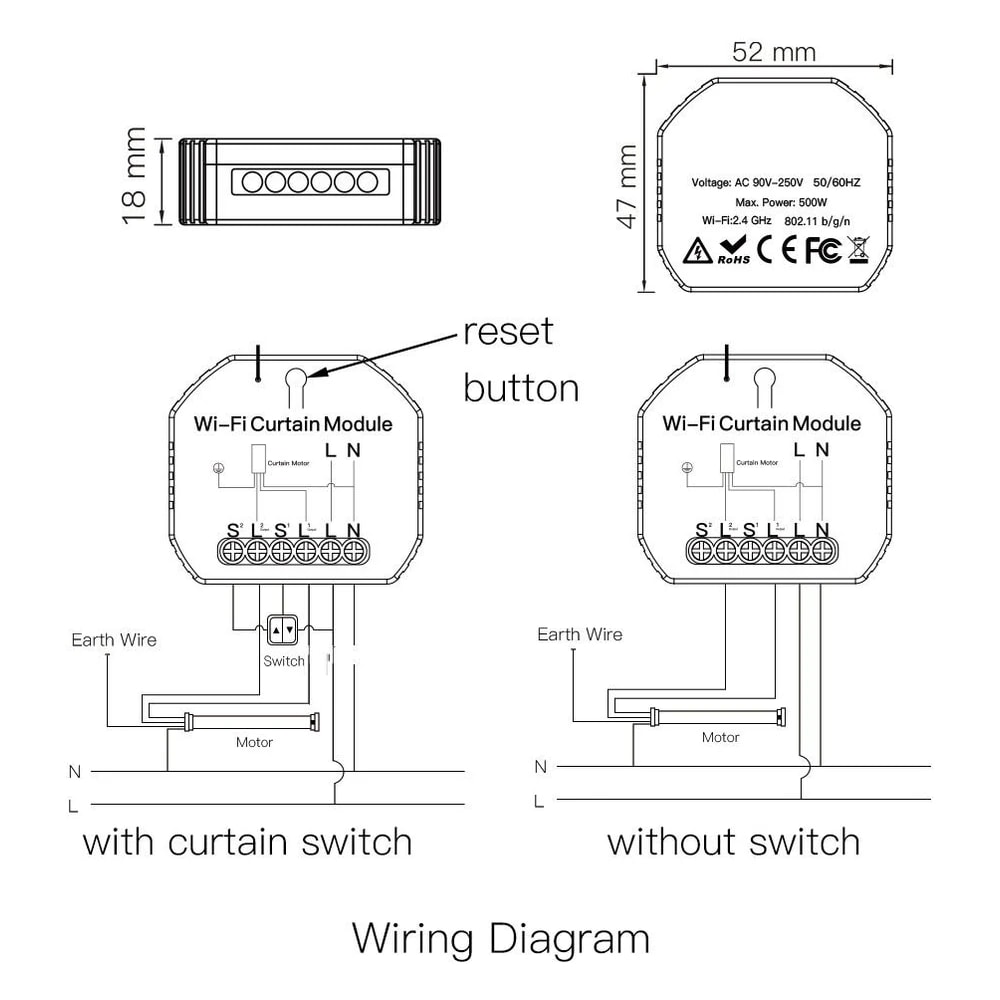

| Wiring terminals | 6 screw terminals: L and N (mains supply), S1/L1 and S2/L2 (motor direction outputs). Normally Open contact type |
Fitment does not apply here in the usual sense. This is a hidden module, not a wall plate, so the BS1363 Type-G and UK back-box pattern questions we answer for MOES wall switches have no bearing on this SKU. What matters is space and wiring at the splice point. The 52 x 47 x 18mm body needs somewhere to sit, normally the motor's junction box, the pelmet void, or a deep back box behind the existing curtain rocker. It needs live, neutral and the motor's two direction wires at that point. Older Dubai apartments wired switch-live only, with no neutral at the wall, cannot take it there, though the neutral is almost always present at the motor itself, which is where we prefer to fit it anyway. Our electricians do the wiring, isolate at the board, set the direction and test the end limits. The 220-240V supply here is correct for the module. Please do not open a live pelmet yourself.
MOES in the UAE. A value brand in the Tuya and Zigbee ecosystem, sold in the UAE mainly through its own Amazon.ae store with genuine local stock and review history. Best known among smart-home enthusiasts for retrofit modules, no-neutral switches and scene controllers rather than as a household name. Most devices run on the Smart Life or Tuya app, and the Zigbee ones need a MOES or Tuya gateway. Note that MOES rarely states the wall-box pattern on its switch listings, so we confirm back-box fit before fitting one.
